For large-volume dental applications, the NXD 200Pro is the ideal dental 3D printer. Dental resin models, splints, impression trays, occlusal night guards, and other items may all be printed using this dental 3D printer. Intuitive interfaces and ease of use match the excellent speed and throughput, making them perfect for dentistry labs.
Description

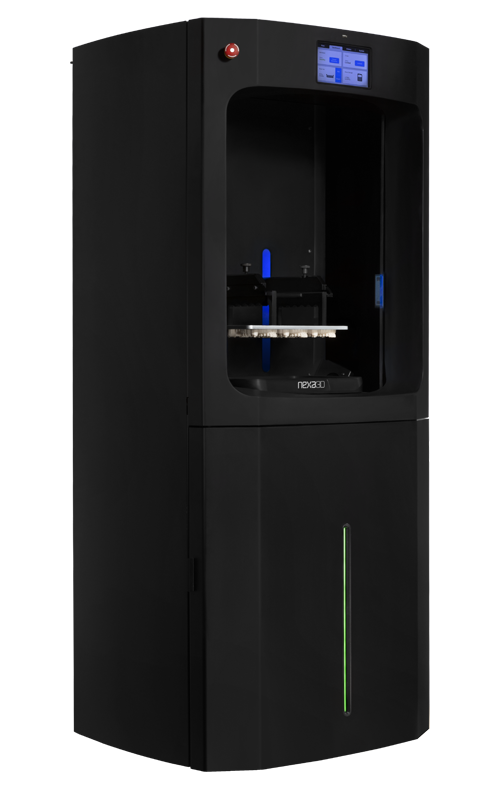

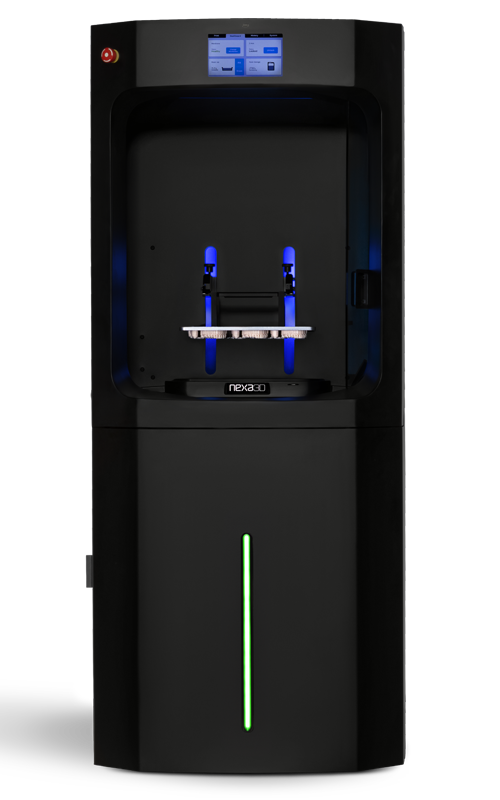

Nexa3D NXD 200Pro
Ultrafast 3D Printer for Dental Applications
Starting at:Â
49900
*
For large-volume dental applications, the Nexa3D NXD 200Pro is the ideal 3D printer. Dental resin models, splints, impression trays, occlusal night guards, and other items can all be printed using this dental 3D printer.
Nexa3D NXD 200Pro, Speed and Reliability Boost Productivity for Accurate and Repeatable 3D Printed Dental Models and Validated Dental Workflows
- Nexa3D NXD 200Pro is the dental manufacturing solution you can rely on are delivered right to your lab using ultrafast 3D printing and validated materials and workflows. Meet the rising volume demand with a single, faster, larger printer that takes up less room, is simple to operate, and has a lower cost per part.
- Profit from the Nexa3D NXD 200Pro builds platform’s uniformity, repeatability, and accuracy of 90–95% at 100 m. In-house production of patient-specific 3D printed dental models, surgical guides, splints, trays, and night guards is quick, dependable, and accurate.
- The Nexa3D NXD 200Pro, created especially for the dental sector, provides validated Keystone performance dental resins with world-class dental model manufacturing capabilities at lightning-fast speeds. With a large build plate and high throughput, the NXD 200Pro can print up to 20 flat dental models in less than 30 minutes, keeping dental practices productive.
Printer Specs
Build Volume
275 x 155 x 200 mm (10.8 x 6.1 x 7.8 inch)
Max Resolution
4K (3840 x 2160)
External Dimensions
21 x 20x 32 inch (53.34 x 50.80 x 81.28 cm)
Internal Dimensions
15.50 x 10.75 x 25.75 inch (39.37 x 27.30 x6 5.40 cm)
Weight
110 lbs empty (49.89 kg empty)
Max Resolution
4K (3840 x 2160)
Pixel Pitch
76.5 µm (0.0030 in)
Wavelength
405 nm
Build Materials
UV Curable Plastics: KeyModel Ultra; KeySplint Soft; KeyGuide; KeyTray
Post-Processing for Nexa3D NXD 200Pro
xWash
- Manufacturers now have access to a potent, reliable, and environmentally friendly washing solution thanks to Nexa3D’s xWash, which is engineered for Nexa3D’s photoelastic materials and matches the build volumes and process requirements of the super-fast NXE400 3D printer.
From Small Parts to XL Build Volume
- For greater production flexibility, xWash accepts parts that are fastened to the NXE 400 build platform or a loose parts basket.
xCLEAN Delivers 3x Saturation
- enhanced chemical/flash-point safety properties, 3x saturation limits compared to isopropanol, and environmentally friendly recycling options have all been validated and optimized for Nexa xCLEAN.
xCure
- The curing of all resin-based parts is optimized by Nexa3D’s xCure 3D printing post-processing solution to guarantee consistent dimensional accuracy, strong structural integrity, and stronger molecular structures.
Optimal Throughput
- Designed to process the entire print envelope of Nexa3D’s NXE 400 printer, it can handle parts with a volume of up to 16 liters. The chamber can hold up to three build plates simultaneously and allows parts to cure either directly on the build plate or individually on translucent shelves.
Combined Heat and Dual Wavelength Light
- Dual-wavelength high-power LEDs as well as sequential UV and thermal curing modes are also available. It operates in three curing modes—UV only, heat only, and UV+heat—and is constructed in accordance with international industrial construction and safety standards.
Material-Specific Sequences You Can Trust
- In a controlled chamber, pick from a list of prescribed sequences that are material-specific. It is easily upgradeable for additional materials and pre-loaded with validated workflow-curing recipes for all authorized Nexa3D photopolymer materials.
Maximum Coverage
- LEDs with a wavelength of 365+405 nanometers deliver a wide spectrum for the deepest cure possible. Six LED strips with reflective interiors and 360-degree coverage maximize uniformity.
Additional resources
With its endless possibilities, our Xperts are here to help you find the right combination of solutions that will enhance your product by allowing you to innovate, develop, and design without limits.
KeyModel Ultra
- KeyModel Ultraâ„¢ is a material designed for the 3D printing of dental and orthodontic models.
KeySplint Soft
-  KeyPrint® KeySplint Soft® is a light-curing resin for the 3D printing of flexible biocompatible dental devices for use with DLP printers (385-405nm).
KeyTray Resin
- KeyTray is a powerful, Class I biocompatible 3D printing resin created to quickly and precisely build unique, individual impression trays. To withstand the forces required to take a patient impression and remove the tray from the oral cavity, the material is robust and strong. It works with every kind of impression medium.
xGPP Resin 5k
- Air duct, fluid flow models, performance prototypes, usable end-user components, and snap-fit
KeyGuide Clear Resin
- A rigid, biocompatible (class I) 3D Printing resin called KeyPrint® KeyGuide® is used to make surgical guides for partial and complete arches. To withstand the forces of guided surgery in the oral cavity, the material is strong and resilient. It is a light-curing resin for use in DLP 3D printers that uses wavelengths between 385 nm and 405 nm to create biocompatible dental surgical guides.
xCast Resin 5kg
- The NXE400 3D printer’s xCast software is designed exclusively for the manufacture of precise investment casting patterns.
xFLEX475-Black
- A medium-soft rubber-like substance that when cured becomes a supple, elastomeric substance. Customers can use this industrial-strength material in sportswear and footwear midsoles, handles and grips, pipes and manifolds, seals and gaskets, and other applications that call for resilience, snapback, and tear resistance. Additionally, this material has a remarkable elongation at a failure of 150 percent, a fantastic energy return of up to 50 percent, and is solvent resistant in the majority of cases.
xClean parts washing solution
- Solvent for washing parts with higher flash point and 3X more capacity than IPA.
