Markforged

Metal X

Markforged Metal X is a revolutionary metal 3D printing system that produces next-day custom, functional metal parts.

    What features do you get with Metal X?

    • Get fully functional custom metal parts from your 3D designs in as few as 28 hours.
    • Print metal powder bound in a plastic matrix, eliminating many safety risks traditionally associated with metal 3D printers. No loose powder, no lasers, and none of the necessary traditional safety precautions. Safe to use in a shop environment with minimal facility upgrades.
    • With a precision machined gantry, heated chamber and print bed, and advanced extrusion hardware the Metal X is equipped to reliably and repeatedly print durable metal parts.
    • Designed with the end-user in mind, your Metal X’s wear components and consumables, including print sheets, nozzles, and brushes, are easily accessible and simple to swap out or replace.

    Printer Specs

    Part Characteristics
    Materials
    3D Printer Characteristics
    Part Size
    Metal
    Inconel 625
    FDM
    Medium (Max: 14 in/40 cm)
    Strength
    Copper
    Fiber Reinforced
    Stainless steel
    Heat Resistant
    Tool Steel (A2, D2, H13)
    Markforged-Sinter-2-for-metal-x-mark3d-uk-3d-metal-printing

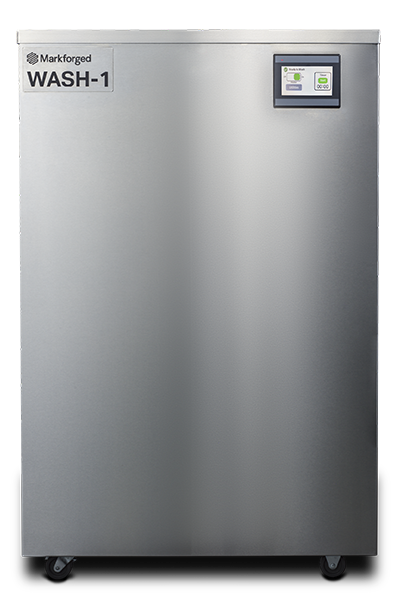

    Wash-1

    • The Wash-1 for the Metal X printing system is a solvent-based debinding system that uses a high-performance fluid to safely, efficiently, and eco-consciously clean your metal prints in preparation for sintering.
    • As a tested and verified shop-safe system, the Wash-1 is easy to operate and needs simple ventilation.

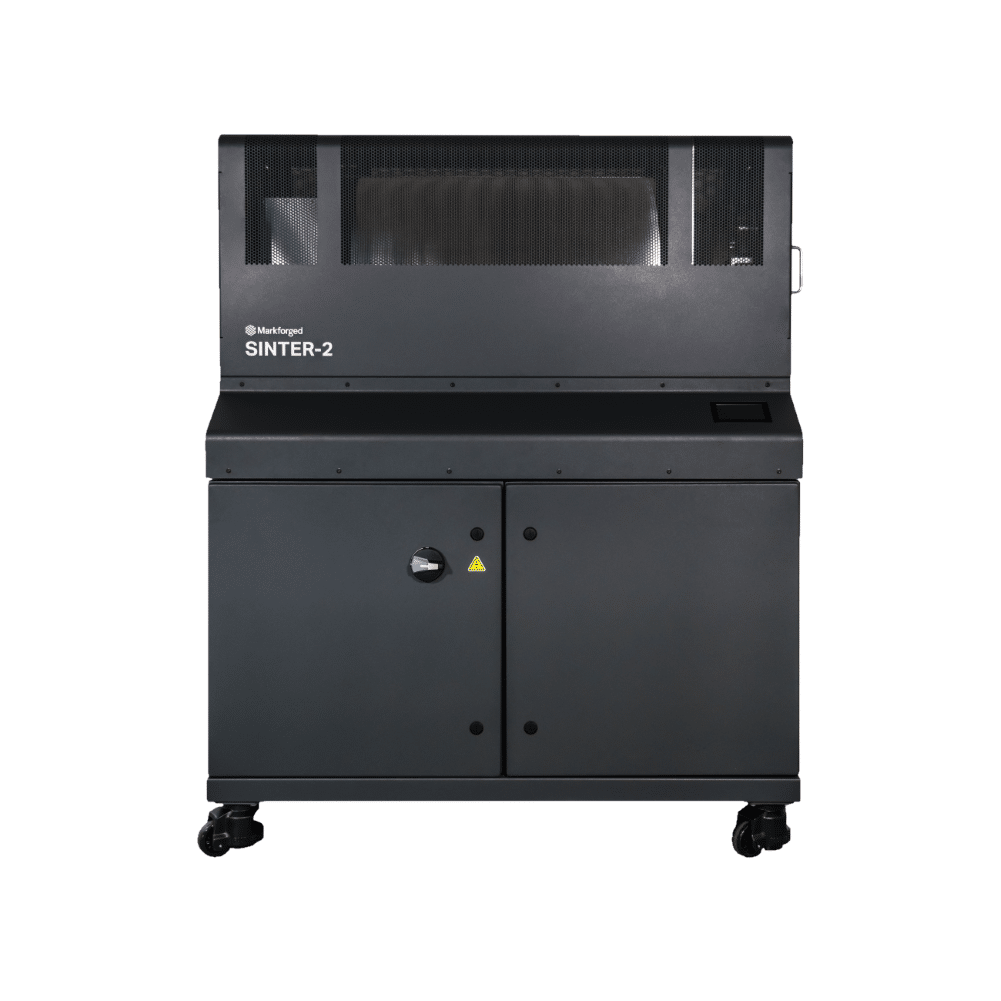

    Sinter-1 and Sinter-2

    • The Markforged Sinter-1 and Sinter-2 are highly optimized tube furnaces used for sintering 3D printed metal parts. They provide leading edge sintering reliability and run times, as well as advanced safety features.
    • The Sinter-2 builds on the capabilities of the Sinter-1, featuring a larger working volume, more precise temperature control, and a mechanical door interlock. The Sinter-2 can also process small parts in Express Mode, where it can sinter up to 250g of parts in just 17 hours.
    metals-A2

    A2 & D2 Tool Steel



    • Optimized to 3D print pieces for a wide variety of manufacturing uses and custom tool fabrication, A2 and D2 are cold work tool steels that gain extremely high hardness after heat treatment. A2 tool steel, often regarded as a “universal” cold work steel, offers a combination of decent wear resistance and toughness, where D2 tool steel is harder and even more wear-resistant, but less tough. Both are designed to yield long-lasting cutting and forming tools, and other printed parts where ‘hard’ and ‘tough’ are the keys to success.

    H13 Tool Steel



    • H13 tool steel can be heat treated to 45 HRC with a UTS of 1500 MPa, making it a versatile hot work tool steel ideal for manufacturing operations. It’s harder than 17-4 PH Stainless Steel and maintains its material properties at high temperatures. Use it with confidence for tool bodies, brazing fixtures, and other parts where you need superior hardness or heat resistance.
    metals - H13
    metals-17-4

    17-4 PH Stainless Steel



    • Classic and reliable, 17-4 PH Stainless Steel is a multipurpose steel best used in heavy-duty industrial applications for tools, light weight brackets, high-wear tooling, or even functional prototypes. Heat-treatable to 36 HRC with 95% wrought strength, Markforged’s 17-4 PH prints high-strength, robust metal parts, every time.

    Inconel 625



    • Inconel 625 is a nickel-chromium based superalloy engineered to maintain print strength and corrosion resistance at high temperatures. Bring the power of a forge to your Metal X system, enabling you to print completely functional prototypes and end-use parts that can survive the harshest environments.

    *Markforged Inconel 625 meets chemical requirements of ASTM B443 and maintains a UTS of 500 MPa at 600 ºC.

    metals-inconel 625
    metals-copper

    Copper



    • A soft and ductile metal, copper is valued for its electrical and thermal conductivity, making it an ideal material for heat sinks and heat exchangers, power distribution components, manufacturing equipment, and more. With greater thermal and electrical conductivity than copper alloys used in DLMS printers, Markforged’s pure Copper easily prints custom metal parts that may have been too expensive, too time consuming, or completely impossible to make before.
