The QLS 820 thermoplastic 3D printer is a quad laser system that delivers unmatched production capabilities and has the greatest component throughput in its class.
Description

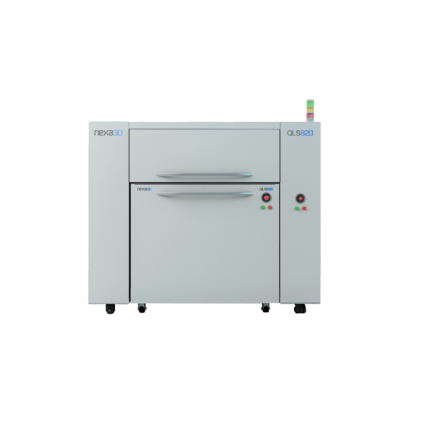

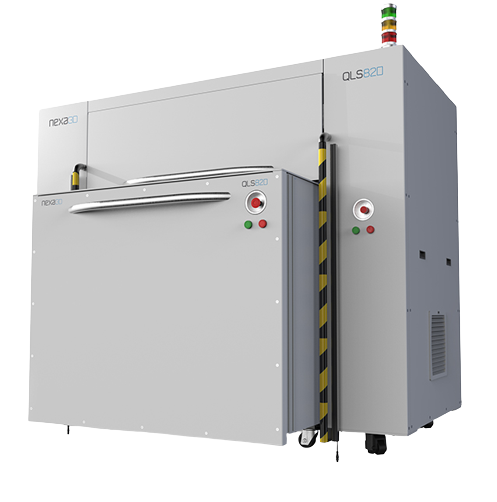

Nexa3D QLS 820
High Throughput SLS 3D Printer
Starting at:
528000
*
The QLS820 thermoplastic 3D printer is a quad laser system that delivers unmatched production capabilities and has the greatest component throughput in its class.
Nexa3D QLS820, Unmatched Throughput, Automation-Ready, Open Platform and, High Temp Material Processing
- Numerous materials, including PA 12, PA 11, Polypropylene, PBT, as well as aluminium, glass, and fiber-filled polymers, may be printed thanks to a broad temperature range, an inert processing environment, and an open-source platform.
- The system provides a technology-neutral, open, and automation-ready platform that can integrate with everything from MES and ES systems to modular post-processing solutions.
- Nexa3D QLS820 with print rates of up to 8L per hour and an average packing density of 20%, quad-laser Nexa3D QLS820 outperforms competing powder-based polymer 3D printing systems in terms of productivity by up to 4x.
What features do you get with the Nexa3D QLS820?
Printer Specs
Build Volume
350 x 350 x 400 mm
Dimensions Closed
200 x 140 x 200 cm
Laser Type
4 x 100W CO2
Printing Speed
Up to 8,000 ccm per hour
Z Resolution
50-200 microns
Material Delivery System
Removable Automated Build Unit
Weight
750kg
Power Requirements
26 kWat
Operating Temperature
+5ºC/+25ºC
Interface
Web Dashboard
Additional Equipment
Power handling and refreshing station
Additional resources
With its endless possibilities, our Xperts are here to help you find the right combination of solutions that will enhance your product by allowing you to innovate, develop, and design without limits.
Additional information
| Brand | Nexa3D |
|---|
