nexa3d

XiP

Ultrafast Desktop Resin 3D Printer



Starting at:
6295
*

Get personalized pricing

The XiP delivers high-quality prototypes from your desktop by combining a small footprint with a large build capacity and quick print speed.

Download Datasheet

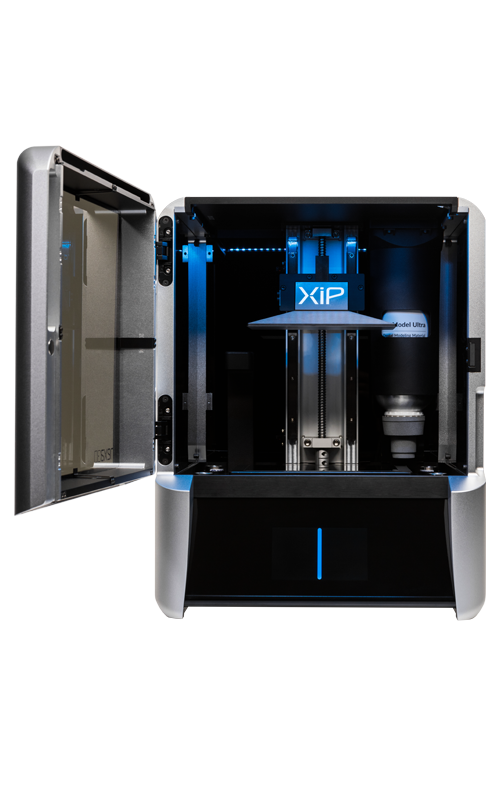

  • XiP open
  • XiP open
  • XiP open

Discover

What features do you get with XIP?

  • The XiP desktop resin 3D printer is designed and built with the full machine lifecycle in mind. Easily recycled packaging, part choices, and a full aluminum body ensure your modular XiP printer can be easily upgraded over time without excess waste.
  • The XiP is the best-in-class desktop resin 3D printer available today, providing the utmost versatility thanks to its open material access, industrial performance, and modular design. Both Nexa3D-approved resin and materials from other companies can be used by users to produce reliable, repeatable components and prototypes.

Printer Specs

Build Volume
195 mm, Y: 115 mm, Z: 210 mm (7.7 in, Y: 4.5 in, Z: 8.3 in); 4.8 Liter Print Volume
Layer Thickness
50 µm / 100 µm / 200 µm; 0.002 in/ 0.004 in / 0.008 in
Max Resolution
4K Monochrome 9.3” LCD
Pixel Size
52 µm
Hardware
Billet Aluminum Enclosure; 420 mm (16.5 inch) W x 350mm (14 inch ) D x 530 mm (21 inch) H; Rigid parallel linear rails, precision Ballscrew Z-axis; Ethernet / USB / Wi-Fi connectivity; 5.5 inch Color LCD Touchscreen Display
Build Materials
Henkel, BASF, and Keystone combined with special in-house resins
Materials
KeyGuide
KeyModel Ultra
x45-Clear
x45-Natural
xABS3843
xCE-Black
xCERAMIC3280
xESD
xFLEX402-Black
xFLEX475-White
xMODEL15-Black
xMODEL15-Gray
xMODEL15-White
xMODEL17-Clear
xMODEL35-Black
xMODEL35-Gray
xPEEK147
xPP405-Black
xPRO410

Post-Processing for XIP

Wash+Cure



  • The Wash+Cure is designed specifically for cleaning and curing XiP-printed parts. An automatic post-processing solution that is all-inclusive.



Washing:



  • Includes a Wash Bucket with a sealed lid, a basket made to hold the XiP build-plate or loose parts, and other accessories.
  • xCLEAN or isopropanol cleans consistently with magnetic stirrers.
  • Capacity: 5.5 L



Curing:



  • LED tower with a powerful 405 nm and revolving base
  • Internal reflectors in the hood provide more curing power.
  • Confirmed curing results from the material partners



NOTE: The Wash+Cure bucket and the Toolkit bucket are identical. You will then have two buckets to enable two-stage washing after purchasing the Wash+Cure.
