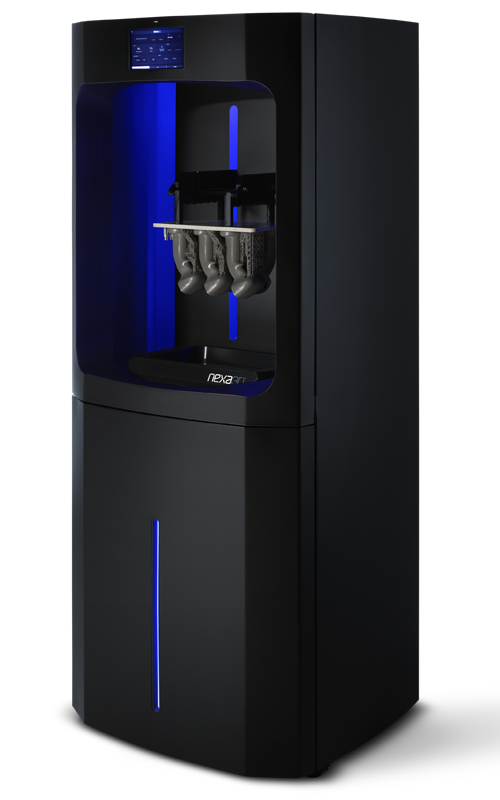

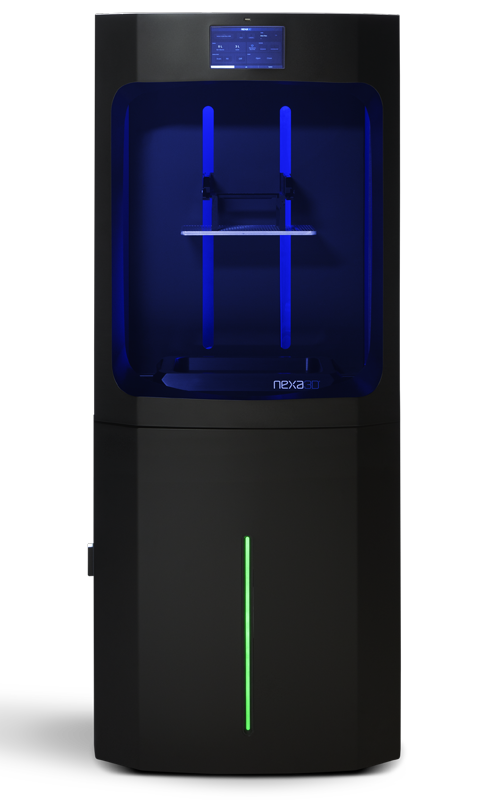

Nexa3D NXE 400Pro Industrial Resin 3D Printer

Unleash Industrial-Grade Speed and Precision with the Nexa3D NXE 400Pro

Lightning-Fast Print Speeds

The NXE 400Pro leverages Nexa3D’s proprietary LSPc technology, enabling up to 6.5 times faster print speeds than traditional SLA printers.

Huge Build Volume

Print large parts or high quantities in one go with a 17-liter build capacity, maximizing productivity.

Industrial-Grade Materials

Supports a wide range of durable, high-performance resins designed for prototyping and end-use parts.

Reliable and Intuitive Operation

Streamline workflows with an intuitive user interface, automated resin management, and robust build platform.

Features that Set the Nexa3D NXE 400Pro Apart

Nexa3D NXE 400Pro production rates are up to 6.5 times faster with Nexa3D’s patented LSPc 3D printing process than with other industrial 3D printers in the same class. The highest possible levels of production build speed are also guaranteed by uniform exposure and process control.
The Nexa3D NXE 400Pro photopolymer 3D printer offers 2.5 times more build volume (17L) than SLA and DLP-based technologies, enabling much larger parts, higher part throughput, and ultimately lower part costs—all with higher-resolution pixels (76.5 m) and isotropic prints.
Industrial resin 3D printers like the Nexa3D NXE 400Pro offer a variety of materials to meet performance requirements, including PP-Like, ABS-Like, and engineering-grade functional materials, and are scaleable to meet manufacturing demand.

Post-Processing for Nexa3D NXE 400Pro

xWASH

Efficient, Reliable, and Eco-Friendly Washing System
Designed to complement the XiP Pro and NXE400Pro 3D printers, xWASH is tailored to Nexa3D validated resin materials. It is fully compatible with Nexa3D xCLEAN cleaning solutions, providing 3x higher saturation capacity, environmentally conscious recycling options, and superior safety with enhanced chemical and flash-point features.

Variable-speed bi-directional agitation for thorough and customizable cleaning
Convenient drain and fill ports for hassle-free maintenance
Adjustable cleaning timer to suit part geometry and resin requirements

Download

xCURE

Precision Curing for Dimensional Accuracy and Structural Integrity
xCURE supports parts up to 16 liters in volume, with the capacity to hold up to three build plates simultaneously. It offers the flexibility to cure parts directly on the build plate or individually in a basket. The system optimizes curing through dual-wavelength LEDs, multi-build plate compatibility, and simultaneous UV and thermal processing. Its validated workflows ensure the ideal balance of temperature, UV wavelength, and material-specific settings, delivering perfectly cured parts with consistent mechanical properties and reliable performance.

Supports parts up to 16 liters in volume
Compatible with NXE400Pro and XiP Pro build sizes
Dual-wavelength LEDs for parallel UV and thermal curing

xCURE Desktop

Ultrafast and Versatile UV Curing System
xCURE Desktop is designed for speed and flexibility, offering support for three UV wavelengths (365nm, 385nm, and 405nm) to suit a wide range of resin 3D printers. Built with a rugged anodized metal enclosure, it ensures durability while reducing cure times by up to 80%. With curing times as low as 6 minutes, users can significantly accelerate post-processing. Nexa3D’s predefined curing workflows deliver reliable mechanical properties and consistent part performance.

Fits XiP build volumes
Supports UV wavelengths of 365nm, 385nm, and 405nm
Curing times between 6–20 minutes
Includes presets and customizable settings for tailored curing

Wash+Cure

Compact 2-in-1 Post-Processing Solution
Wash+Cure combines washing and curing into a single, space-saving system designed for the XiP desktop printer but compatible with most resin-based 3D printers. Simply place your parts in the wash bin with IPA or xCLEAN solution for the cleaning cycle. Afterward, use the rotating turntable, LED arm, and reflective cover for efficient and thorough post-curing.

5.5-liter desktop capacity
Magnetic agitator ensures even solvent circulation for consistent cleaning
Rotating base platform provides uniform light exposure for optimal curing

Printer Specs

Materials

KeyModel Ultra, xCERAMIC3280, xMODEL15, xMODEL35, KeyTray Resin, xGPP Resin, KeySplint Soft, KeyGuide, xCast Resin, xClean

Max Resolution

4K (3840 x 2160)

Pixel Pitch

76.5 µm (0.0030 in)

Wavelength

405 nm

Build Materials

UV Curable Plastics; xGPP-Translucent; XGPP-Grey; xPRO410; 3843-ABS-Black; xCE-Black; ABS-Black; xCE-White; xPP405-Black; xPP405-Clear; xPEEK147; x45-Natural; x45-Clear, x45-Black, xFLEX

Build Volume

10.8 x 6.1 x 15.7 inch (274 x 155 x 400 mm)
